20–50 Bed Hospital Ideal Layout: A Complete Guide by ACCO Construction (2025)

Introduction to ACCO Construction

ACCO Construction is Pakistan’s leading design-build company specializing in hospital planning, medical facility construction, turnkey healthcare infrastructure, MEP engineering, and high-performance building design. With more than 20 years of experience, ACCO has delivered multiple healthcare projects in Lahore, Karachi, Islamabad, Faisalabad, Multan, and across Pakistan.

Our specialized team includes:

  • Healthcare architects

  • Hospital MEP engineers

  • Medical planners

  • Structural engineers

  • HVAC & clean room specialists

  • Turnkey project management teams

ACCO Construction is headquartered in Lahore and is known for delivering modern, functional, and compliant healthcare layouts that meet international and Pakistan-specific standards.

Introduction to the Topic: 20–50 Bed Hospital Ideal Layout

A 20–50 bed hospital is one of the most in-demand healthcare facility types in Pakistan, especially in developing urban areas, district towns, and private healthcare sectors. These hospitals provide essential medical care without requiring large-scale infrastructure budgets.

Designing the ideal layout is critical because:

  • Hospitals must ensure smooth patient flow.

  • Medical staff need efficient working routes.

  • Emergency, OPD, IPD, and diagnostic areas must be strategically connected.

  • Compliance with Pakistan Health Infrastructure Guidelines is mandatory.

  • Patient safety, infection control, and hygiene standards depend on layout design.

In this blog, ACCO Construction provides a complete, professional, SEO-optimized guide to the perfect 20–50 bed hospital layout for entrepreneurs, investors, doctors, and healthcare organizations planning a new facility.

Understanding the 20–50 Bed Hospital Layout

The layout of a 20–50 bed hospital depends on:

  • Number of departments

  • Clinical functions

  • Type of services

  • Flow between units

  • Land size and location

  • Regulations by Punjab Healthcare Commission (PHC)

  • Budget and construction approach (PEB, RCC, or hybrid)

Below is a complete breakdown.

Core Components of a 20–50 Bed Hospital

1. Entrance & Reception Zone

A professional and functional entrance area includes:

  • Reception counter

  • Waiting lounge

  • Emergency access

  • Wheelchair access

  • Security/registration area

  • Pharmacy (optional)

Average area required: 700–1,200 sq ft.

2. Outpatient Department (OPD)

Typically includes:

  • 4–10 consultation rooms

  • Triage room

  • Minor procedure room

  • Waiting area

  • Treatment room

Area requirement: 1,200–2,000 sq ft.

3. Emergency Department

For a 20–50 bed hospital, emergency is critical:

  • 2–4 emergency beds

  • Trauma room

  • Resuscitation room

  • Doctor/nurse station

  • Separate entry

Area requirement: 800–1,200 sq ft.

4. Inpatient Department (IPD)

This includes:

  • 20–50 beds

  • General ward

  • Semi-private rooms

  • Private rooms

  • Nursing stations

  • Storage

  • Clean/dirty utility

Area requirement: 5,000–8,000 sq ft depending on design.

5. Diagnostic & Imaging

  • X-Ray room

  • Ultrasound room

  • Mammography (optional)

  • CT scan (optional for 50 beds)

Area requirement: 1,000–1,800 sq ft.

6. Operating Theatre (OT) Complex

Standard OT block includes:

  • 1–2 main OTs

  • 1 minor OT

  • Scrub area

  • Sterilization

  • Recovery room

  • Nurse station

  • Anesthesia room

Area requirement: 1,500–2,500 sq ft.

7. Pathology Laboratory

Includes:

  • Sample collection room

  • Microbiology

  • Hematology

  • Biochemistry

  • Technician area

Area requirement: 600–900 sq ft.

8. ICU / HDU

For 20–50 bed hospitals:

  • 2–6 ICU beds

  • 4–8 HDU beds

Area requirement: 800–1,400 sq ft.

9. Maternity / Gynae Unit

Optional based on scope:

  • Delivery room

  • Labour room

  • Neonatal nursery

  • Waiting area

Area requirement: 1,000–1,500 sq ft.

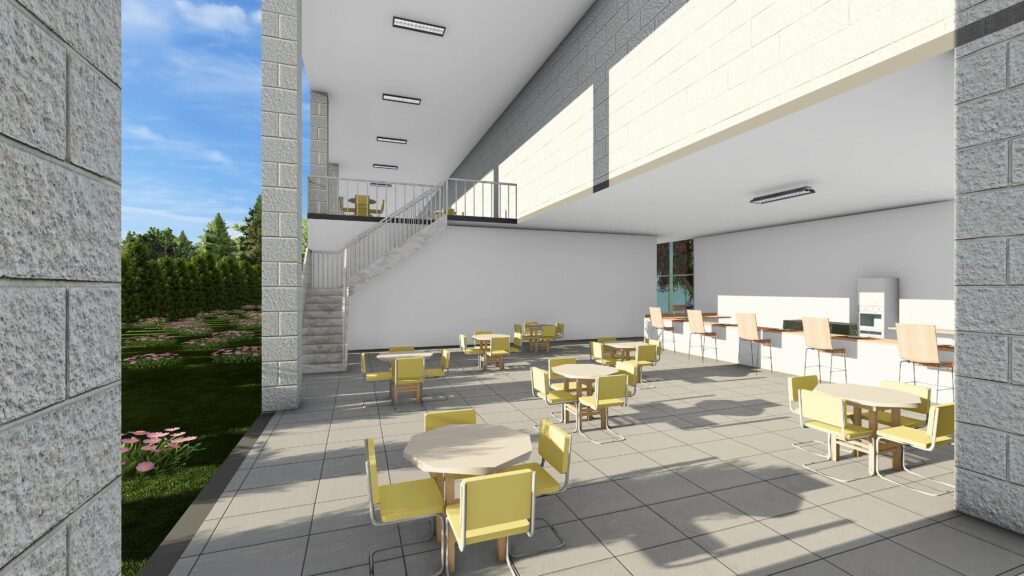

10. Support Services

  • Kitchen

  • Laundry

  • Storage

  • Maintenance rooms

  • Staff lounges

  • Changing rooms

  • Server room

  • Admin offices

Area requirement: 1,000–2,000 sq ft.

Ideal 20–50 Bed Hospital Space Distribution (Table)

DepartmentRecommended Area (sq ft)
Entrance + Reception700 – 1,200
OPD1,200 – 2,000
Emergency800 – 1,200
IPD (wards/rooms)5,000 – 8,000
OT Complex1,500 – 2,500
ICU/HDU800 – 1,400
Diagnostics1,000 – 1,800
Lab600 – 900
Gynae/Delivery1,000 – 1,500
Support Services1,000 – 2,000
Total13,600 – 22,500 sq ft

For a multi-storey design (G+1 or G+2), this distribution becomes more efficient.

Key Principles for an Ideal Layout

1. One-Way Circulation Flow

  • Patients, staff, and supplies should never cross paths incorrectly.

  • Separate clean, semi-clean, and dirty zones.

2. Proximity Planning

Critical departments must be connected:

  • Emergency → Radiology

  • OT → ICU

  • OPD → Pharmacy

  • Lab → OPD

3. Infection Control

  • HEPA filtration in ICU/OT

  • Negative pressure in isolation rooms

  • Separate entry for emergency patients

  • Clean air conditioning zoning

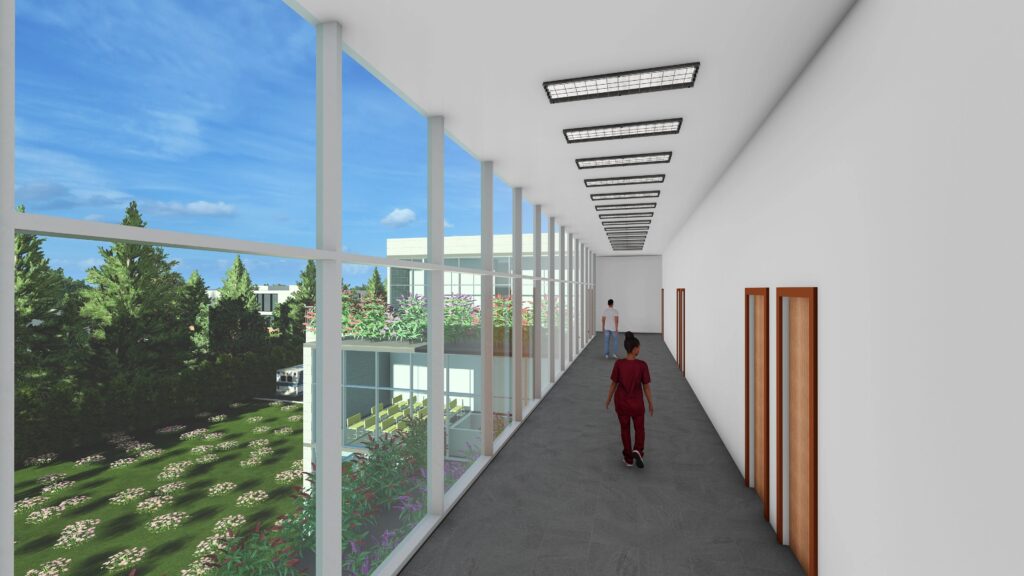

4. Accessibility

  • Wheelchair ramps

  • 6 ft minimum corridor width

  • Elevator for G+ floors

5. Compliance with PHC & WHO Guidelines

  • Fire exits

  • Proper ventilation

  • Waste management

  • Water quality

  • Medical gas system

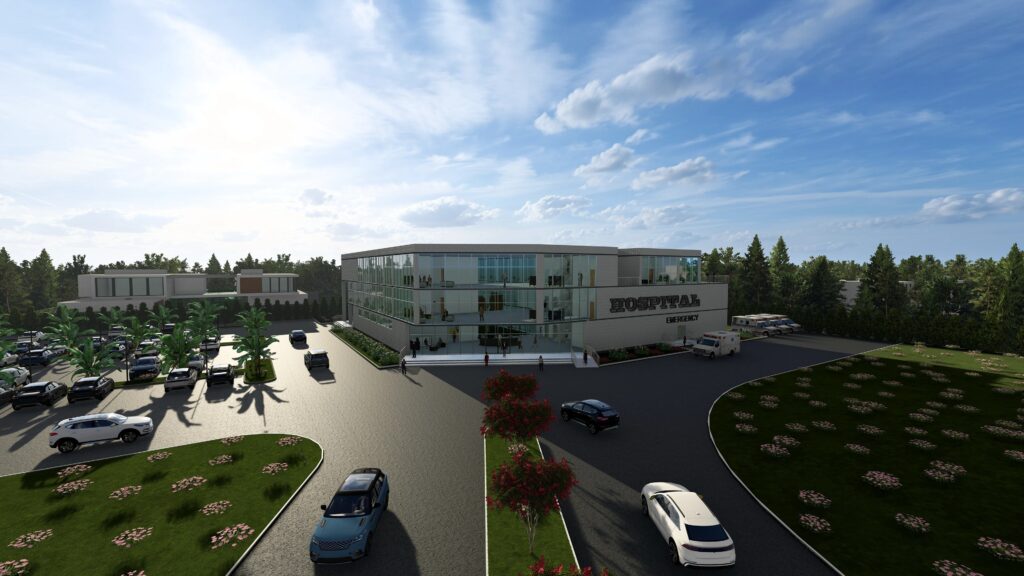

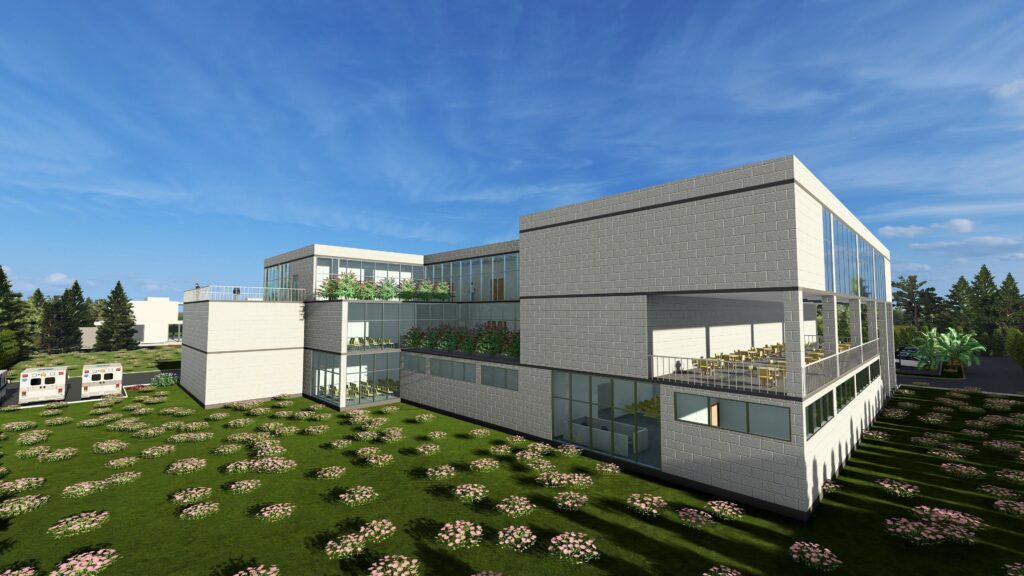

Architectural Layout Example (ACCO Standard)

Ground Floor (Recommended)

  • Reception & waiting

  • OPD rooms

  • Emergency

  • Radiology

  • Pharmacy

  • Laboratory

  • Minor OT

First Floor

  • IPD (general ward + semi-private rooms)

  • Private rooms

  • ICU / HDU

  • Staff lounge

Second Floor (optional for 50 beds)

  • OT complex

  • CSSD

  • Delivery suite

  • Admin block

This arrangement supports efficient flow and minimizes travel time for staff.

Pros and Cons of a 20–50 Bed Hospital Layout

Pros

  • Low investment compared to 100–300 bed hospitals

  • Quick construction time (especially PEB structures)

  • High operational efficiency

  • Profitable for private healthcare owners

  • Ideal for urban and rural areas

  • Flexible expansion options

Cons

  • Limited specialized services

  • Requires strong planning to avoid congestion

  • Higher dependency on referral networks for complex cases

  • Requires qualified staff and ongoing operational costs

Frequently Asked Questions (FAQs)

1. What is the ideal size of a 20–50 bed hospital?

Total area usually ranges between 13,000–22,500 sq ft, depending on departments.

2. How many floors are required?

Most 20–50 bed hospitals are G+1 or G+2, depending on land size.

3. What is the minimum land requirement?

At least 10,000–15,000 sq ft for efficient planning.

4. How many OTs are needed?

1 main OT and 1 minor OT for 20-bed;
2 main OTs + 1 minor OT for 50-bed.

5. Does ACCO provide turnkey hospital construction?

Yes. ACCO provides design, drawings, MEP planning, construction, finishing, and equipment layout.

Internal Links (ACCO Website)

  • House Construction in DHA Lahore

  • Commercial Plaza Construction Lahore

  • Hospital Construction Services Pakistan

  • PEB Building Construction

  • MEP Engineering Services

(You can insert actual URLs when uploading to your website.)

External Links (High Authority Reference Sources)

  • Government of Pakistan Healthcare Guidelines (construction.gov.pk)

  • Punjab Healthcare Commission Standards (phc.org.pk)

  • WHO Hospital Planning Guidelines

  • ArchDaily – Healthcare Design Trends

  • DAWN News – Healthcare Infrastructure Reports

Final Verdict

A 20–50 bed hospital is the ideal size for private investors, healthcare entrepreneurs, and medical professionals looking to start a functional, profitable, and efficient medical facility in Pakistan. With the right planning, the layout becomes highly efficient, easy to manage, and scalable for future expansion.

ACCO Construction specializes in creating fully compliant, well-planned, and modern hospital layouts that support:

  • Patient comfort

  • Staff efficiency

  • Infection control

  • Fast construction

  • Long-term sustainability

If you are planning a 20–50 bed hospital, ACCO’s design-build expertise ensures your project meets both international standards and local regulatory requirements.

Call to Action (CTA)

Start your hospital project today with Pakistan’s leading construction company.
Contact ACCO for free consultation, drawings, and cost estimation.

📞 Phone / WhatsApp: +92 300 2358853
🌐 Visit: ACCO Construction Official Website
